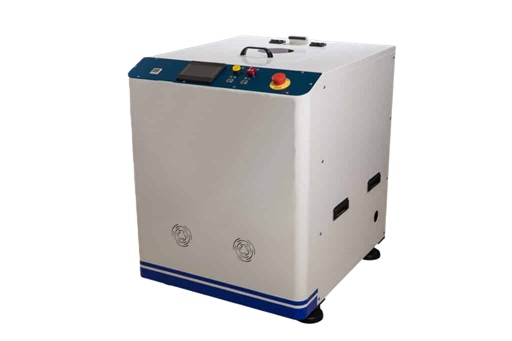

Planetary Centrifugal Mixer – MJ Series

MJ-300 / MJ-600 / MJ-1000 / MJ-2000 /MJ-4000 / MJ-10000

Planetary Centrifugal Mixer is also known as a Defoaming Mixer. The MJ Series offers mixing capacities ranging from 300ml to 10,000ml (10L), with optional adapters available for different syringe types, making it the ideal tool for both industry and laboratory applications.

The greatest advantage of the planetary defoaming mixer is the ability to quickly remove air bubbles and achieve thorough mixing in a very short amount of time, significantly reducing time and costs.

The MJ Series comes in two configurations: vacuum and non-vacuum. Models with vacuum defoaming capabilities include a “V” in their model number (e.g., MJ-600V), while non-vacuum models are indicated by an “H.”

The planetary defoaming mixer’s efficiency in achieving rapid mixing and deaeration is instrumental in saving both time and costs.

Applications

  • Chemicals/Polymers: Epoxy with silica micropowder, EL materials and silicone, polymer materials, abrasive materials, sheet adhesives
  • Functional Materials/Conductive Pastes: Resistor pastes, silver pastes, solder pastes, conductive adhesives, LED phosphor, glass sealants for TFT-LCD
  • Printing/Inks: Various ink formulations
  • Electronics/Encapsulation Materials: Semiconductor encapsulants, nanomaterials/CNT, graphene
  • Battery/Electrode Materials: Lithium batteries
  • Pharmaceuticals/Drugs: Suspensions, artificial bone, endoscope adhesives, tube ointments
  • Cosmetics: Emulsions, serums, creams

Advantages of Planetary Mixing

  • Dual-axis centrifugal principle for simultaneous rotation and revolution
  • Independently adjustable rotation and revolution speeds for optimized R&D tuning
  • High-performance vacuum pump for efficient air removal
  • Twin-motor, high-torque design ensures uniform dispersion of dense materials
  • Twin-cup design doubles capacity, improving experimental and production efficiency
  • Blade-free operation minimizes contamination risk and improves product yield
  • High-efficiency mixing reduces temperature rise in high-viscosity materials
  • Intuitive user interface with 20 memory settings for streamlined operations on production lines

Related Accessories & Options

  • Mixing cups: PE/HDPE (150/300/500/1000/2000/5000ml)
  • Cup adapters for different sizes
  • Syringe-type adapters
  • Manual material extrusion tools
  • Counterweights

Downloads

Datasheet_Mixer_eng

Specifications

Model Vacuum Capacity Motor Revolution(rpm) Rotation(%) Time
MJ-10000H No 5000ml x 2 2 x Independent motors 100~600 1~80% 1~600secs/step
MJ-10000V YES 5000ml x 2 2 x Independent motors 100~600 1~80% 1~600s/step, 3 steps
MJ-4000H No 2000ml x 2 2 x Independent motors 100~700 1~80% 1~600s/step, 3 steps
MJ-4000V YES 2000ml x 2 2 x Independent motors 100~700 1~80% 1~600s/step, 3 steps
MJ-2000H No 1000ml x 2 2 x Independent motors 100~800 1~80% 1~600s/step, 3 steps
MJ-2000V YES 1000ml x 2 2 x Independent motors 100~800 1~80% 1~600s/step, 3 steps
MJ-1000H No 500ml x 2 2 x Independent motors 100~1000 1~80% 1~600s/step, 3 steps
MJ-1000V YES 500ml x 2 2 x Independent motors 100~1000 1~80% 1~600s/step, 3 steps
MJ-600H No 300ml x 2 2 x Independent motors 100~1500 1~80% 1~600s/step, 3 steps
MJ-600V YES 300ml x 2 2 x Independent motors 100~1500 1~80% 1~600s/step, 3 steps
MJ-300H No 150ml x 2 2 x Independent motors 100~1500 1~80% 1~600s/step, 3 steps
MJ-300V YES 150ml x 2 2 x Independent motors 100~1500 1~80% 1~600s/step, 3 steps
