Electrical Safety Analyzer

More Speed, More Power, Better Resolution, More Functionality

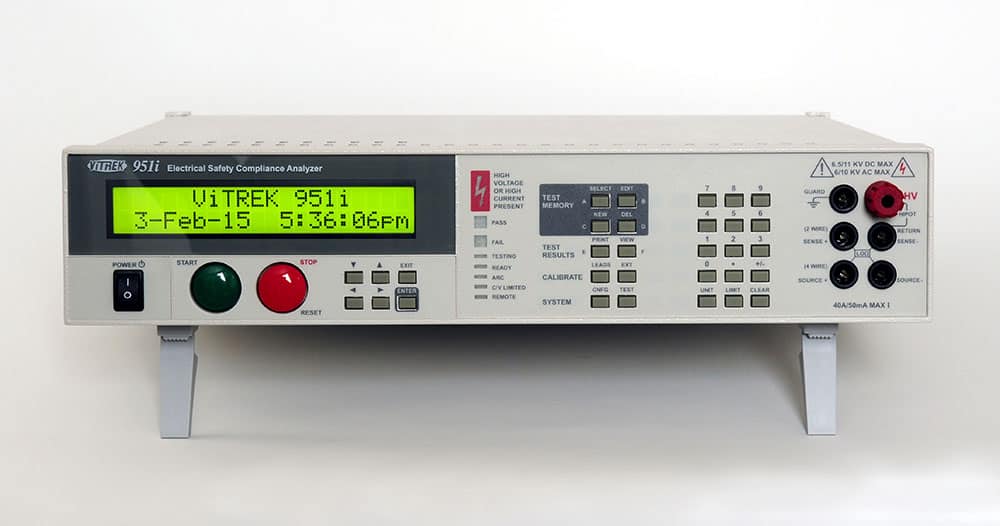

Hipot tester/Electrical Safety Tester/Electrical Safety Analyzer 951

Features

• Highest Level of Operator Safety – include: GFI  earth ground leakage faults, SFI™ Safety Fault Interlock, TLSS™ Test Lead Safety Sense – continuously verifying proper connection of test leads prior to and during HV testing
• High Power Output –  With up to 50mA of sourcing current for DC hipot, gets heavy duty jobs done fast – available 100mA & 200mA AC drive  requirements
• Wide Range of Voltage Capabilities – Choose from 6.5KVDC, 11KVDC or 15KVDC and 6KVAC, 10KVAC or up to 30KV RMS AC with external option
• The Fastest Hipot Testers available –  provide Ramp rates up to 50KV/second, dwell times as low as 20mS and overall test times as fast as 3mS in optional Flash mode
• 4-Wire Milli-Ohmmeter Function provides fast, accurate 5 digit resistance measurements with resolution down to 100µΩ and range up to 100kΩ
• Built-in Phase Angle Measurement – allows the measurement and display of both resistive (in-phase) leakage current and reactive (out-of-phase) leakage current caused by capacitive coupling
• Multi-Dwell Functionality – permits dwells at different voltage levels without having to return to zero between test steps – dramatically simplifying advanced analysis of dielectric properties
• Ramp High/Dwell Low Current Limits – permits the user to set separate limits for the ramp and dwell providing faster ramp times and lower leakage test limits
• Ethernet, RS232, Digital I/O, USB Printer & Scanner Control – All Standard Interfaces – Provides the highest level of test automation. GPIB optional
• High Voltage Scanner Control – up to 256 point switching capability with available 964i HV Scanners.
• Dual Dimensional / Test Specific / Broadband Arc Detection. Where lesser testers allow you to set a single, global, amplitude only arc limit – the technologically advanced 95X Series utilizes time & amplitude based arc limits and uniquely applies them to each desired test
• Pico-Amp Leakage Measurement insures that even the lowest leakage current levels are accurately detected and tera-ohm range IR readings are stable and precise
• Test Specific Fixture & Cable Compensation – Automatically calibrate out offset errors caused by lead resistance, fixture capacitance and leakage
• Multi-Mode IR – Insulation Resistance values up to one Tera-ohm can be obtained with precision in your choice of 3 IR test modes – end on time, end on pass or end on fail
• Capacitance Test Modes –  provide tightly controlled charge and discharge profiles for superior results on critical solar panel tests and other highly capacitive loads
• 400Hz AC Voltage Withstand Testing for avionic component analysis
• Safety Tested per EN 61010-1. EMC compliant to EN 61326-1
