Standard Resistor Calibration Set
SRX-NI-4082

Standard Resistor Calibration Set

  • Owned used and recommend by National Instruments
  • Very stable - drift < 50 ppm/yr
  • Excellent temperature coefficient - 2 ppm/°C
  • Rugged
  • Set consists of 4 resistance standards: 25 Ω, 125 Ω, 5 kΩ, 100 kΩ values as recommended by NI PXIe-408x calibration procedure
  • 3/4" spacing for direct connection to the NI PXIe-4082
  • Low inductance < 0.08 µH
  • Accredited Calibration
  • In addition to the standard values, any custom value is available.  Please contact the IET sales department, for more information
Type： Resistance Standard
Tag：
Share：
  • Very stable - drift < 50 ppm/yr
  • Excellent temperature coefficient - 2 ppm/°C
  • Rugged
  • Set consists of 4 resistance standards: 25 Ω, 125 Ω, 5 kΩ, 100 kΩ values as recommended by NI PXIe-408x calibration procedure
  • 3/4" spacing for direct connection to the NI PXIe-4082
  • Low inductance < 0.08 µH
  • Accredited Calibration
  • In addition to the standard values, any custom value is available.  Please contact the IET sales department, for more information

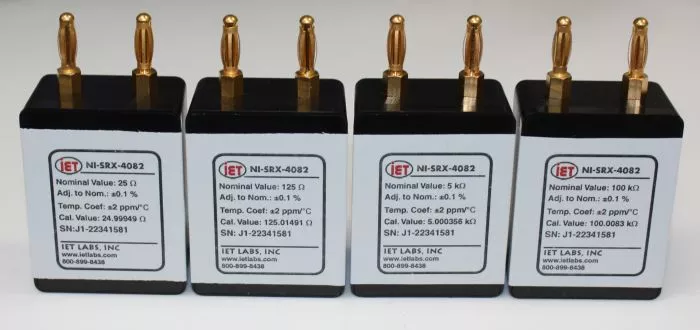

The SRX-NI-4082 is an economical high performance set of 4 resistance standards for calibration of the the NI PXIe-4082.
The resistance values are per the NI PXIe-408x calibration procedure.

The NI PXIe-408x calibration procedure can be found at the link below:
NI PXIe-408x calibration procedure
