Resistance & Capacitance Box
RCS Series

Resistance & Capacitance Box

  • Combination of resistance and capacitance decades
  • Accurate 0.1% to 4% (depending on model)
  • Capacitance range 100 pF - 100 µF
  • Resistance range 1 Ω - 10 MΩ
  • Compact, convenient, and rugged
  • Now includes a NIST traceable calibration certificate
  • Direct reading and easy to use
  • Color coded switches
  • Two models available RCS-500 and RCS-502, RCS-502 has improved accuracy
Type： Resistance Decade Box
Tag：
Share：

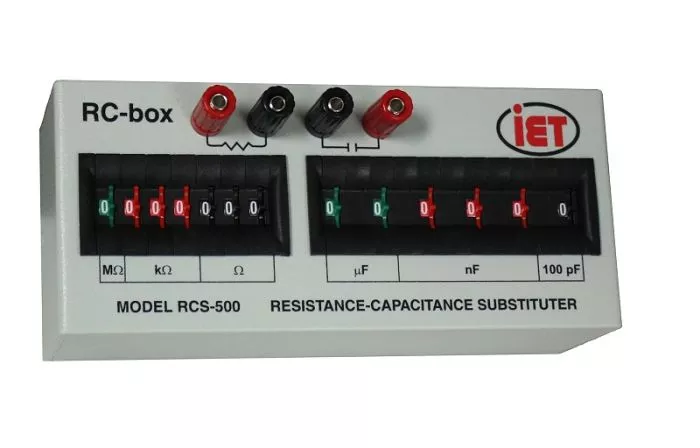

The RCS-box combines the features and specifications of both the R-box and the C-box in one convenient package. Ideal for trimming of timers, oscillators, and filters, the resistance and capacitance may be used independently, in series, or in parallel. A shorting link allows them to be coupled or separated.

One nice feature of the RCS Series is that it uses convenient side by side, color coded thumbwheel switches, that allow for direct reading — There is no fumbling with multiple slide or rotary switches. Simply dial in the desired values and use!

Made of high impact plastic and weighing less than a pound, these decade boxes are very portable and can reduce clutter on a busy lab bench.
